Products Description

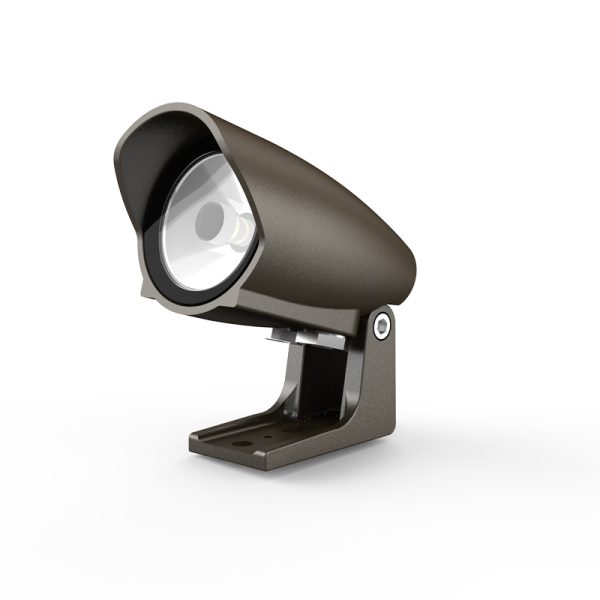

Experience the brilliance of our Waterproof IP65 3W Mini LED Spotlight. These sleek and compact fixtures deliver powerful illumination with a versatile range of installation options, including clip, spike, and clamp mounts. Perfect for highlighting architectural details, accentuating landscape features, or creating dynamic lighting displays. Choose from RGB or RGBW color options and harness the power of DMX control to customize your lighting experience. With their IP66 waterproof rating, these spotlights are built to withstand harsh weather conditions, ensuring long-lasting performance.
Features
3W Mini LED Spotlight with compact design
DMX RGB RGBW Mini LED Spotlight
Die-casting aluminum alloy with UV resistant paint
Optical lens with 6°/10° /15°/ 20°/30°/45°/60°
CREE/OSRAM LEDs with 90+ Lumens per Watt
International Cerfication: TUV, CE, RoHS, UL
| Model No. | A45A |
|---|---|
| Input Voltage | AC220V/DC24V |
| PF | >0.9 |
| Power Consumption | 3W |
| LED | OSRAM or CREE LED |
| LED Lifetime | >50000 hours |
| CCT | 1800K-6000K / Single Color / RGB / RGBW |
| CRI | Ra>80 |
| Luminous Flux | 240lm |
| Beam Angle | 6°/10° /15°/ 20°/30°/45°/60° |
| Control | ON/OFF or DMX |
| Main Material | Die-cast Aluminum + Tempered Glass |
| Shell Color | RAL7012 |

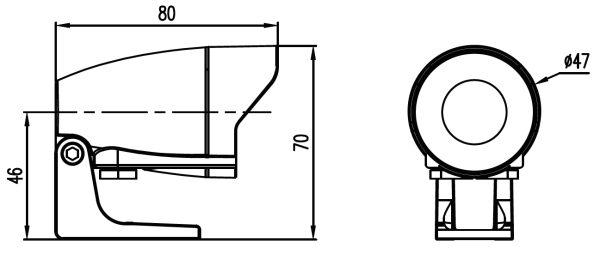

| Dimensions | Ø47*L80*H70mm |
| Weight | 0.35KG |
| IP Rating | IP65 |
| Mounting | Bracket for Surface Mount |
| Working Temperature | -20℃~45℃ |
| Storage Temperature | -30℃~50℃ |
| Humidity | 15%-90%RH |
| Certification | CE RoHS |
Selection Guide
The general 3W version is intended for the smallest accent applications where fixture size matters as much as output. It is suitable for plants, ornaments, small walls, planter details, and decorative architectural elements that need subtle but controllable outdoor lighting.
Related Mini Spotlight Options
- A45D 3W Mini LED Spotlight with Clamp for clamp-mounted installation.
- A45B 3W Mini LED Spotlight with Clip for clip-mounted installation.
- Waterproof IP65 6W Mini LED Spotlight for a higher-output compact version.
- S Series LED Garden Spike Lights to compare the broader low-power range.
- Download Center for technical references, and contact us for quotations and application guidance.
