Products Description
Model A45B – 3W IP65 Mini LED Spotlight with Clip
Compact Design. Professional Performance. Endless Possibilities.
TheModel A45B 3W Mini LED Spotlightis engineered to transform outdoor spaces with precision lighting. Whether you're illuminating architectural details, accentuating garden landscapes, or creating vibrant color-changing displays, this compact fixture delivers exceptional performance in a sleek, low-profile package.
FeaturingDMX512 controlandRGB/RGBW color options, the A45B offers complete creative freedom for dynamic lighting effects. With multiple installation methods—clip, spike, and clamp mounts—it adapts effortlessly to any project requirement.
Built for the outdoors, this spotlight features a ruggeddie-cast aluminum housingwithUV-resistant paintand anIP65 waterproof rating, ensuring reliable performance in all weather conditions.
Key Features
· 3W Power Consumption– Energy-efficient illumination with powerful output
· DMX512 Control– Full-color RGB/RGBW with customizable dynamic effects
· Premium LED Chips– CREE or OSRAM LEDs with 90+ Lumens per Watt
· Multiple Beam Angles– 6°/10°/15°/20°/30°/45°/60° optics for precise lighting
· Versatile Mounting– Clip, spike, and clamp options for flexible installation
· Durable Construction– Die-cast aluminum alloy with tempered glass lens
· Weatherproof– IP65 rated with UV-resistant paint for long-term outdoor use
· International Certifications– TUV, CE, RoHS, UL
Technical Specifications
Parameter | Details |
Model No. | A45B |
Input Voltage | AC220V / DC24V |
Power Factor | >0.9 |
Power Consumption | 3W |
LED Brand | OSRAM or CREE |
LED Lifetime | >50,000 hours |
Color Options | 1800K–6000K / Single Color / RGB / RGBW |
CRI | Ra > 80 |
Luminous Flux | 240 lm |
Beam Angle | 6°/10°/15°/20°/30°/45°/60° |
Control | ON/OFF or DMX512 |
Main Material | Die-cast Aluminum + Tempered Glass |
Shell Color | RAL7012 (Anthracite Gray) |

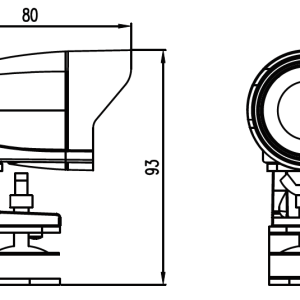

Dimensions | Ø47 × L80 × H93 mm |
Weight | 0.35 kg |
IP Rating | IP65 |
Mounting | Bracket for surface mount (clip/spike/clamp available) |
Working Temperature | -20°C ~ +45°C |
Storage Temperature | -30°C ~ +50°C |
Humidity | 15% ~ 90% RH |
Certifications | CE, RoHS |
Applications
· Architectural Accent Lighting– Highlight columns, building facades, and structural details
· Garden & Landscape Lighting– Uplight trees, illuminate pathways, accent shrubs and flower beds
· Commercial Displays– Perfect for outdoor retail, restaurants, cafes, and hospitality venues
· Residential Gardens– Create ambiance in patios, yards, driveways, and walkways
· Event & Dynamic Lighting– RGB/RGBW with DMX control for color-changing effects and special events
Why Choose Model A45B?
Advantage | Benefit |
Design Flexibility | Multiple mounting options and beam angles to suit any project requirement |
Color Versatility | From warm white (1800K) to cool white (6000K) and full-color RGBW, all DMX controllable |
Built to Last | Premium materials and IP65 protection ensure years of reliable outdoor service |
Trusted Quality | Certified to international standards (TUV, CE, RoHS, UL) for peace of mind |
Energy Efficient | 3W power consumption with 90+ Lm/W output for maximum efficiency |
What's Included
· 1 x Model A45B LED Spotlight
· 1 x Mounting bracket (clip/spike/clamp options available upon request)
· 1 x User manual
· 1 x Warranty card
Ordering Information
Code | Description |
A45B-3W-SC | 3W Single Color (choose CCT: 1800K-6000K) |
A45B-3W-RGB | 3W RGB (DMX512 control) |
A45B-3W-RGBW | 3W RGBW (DMX512 control) |
A45B-MOUNT-CLIP | Additional clip mount |
A45B-MOUNT-SPIKE | Additional spike mount |
A45B-MOUNT-CLAMP | Additional clamp mount |
Elevate your outdoor lighting projects with the Model A45B—where compact design meets professional-grade performance.
For bulk orders, custom specifications, or OEM/ODM inquiries, please contact our sales team today.
Selection Guide
The A45B clip-mounted 3W version works well for decorative edges, planter lips, display structures, garden details, and other compact applications where a very small RGB/RGBW fixture is needed. It is useful when the project needs flexible clip-style positioning rather than spike or clamp mounting.
