Products Description
BL Series LED Bollard Light
Outdoor Pathway & Perimeter Lighting | 5W – 12W | IP66 Waterproof
Product Overview
The BL Series is a premium range of LED bollard lights designed for pathway, driveway, and perimeter lighting applications. Available in six models across two design families with power options from 5W to 12W and IP66 waterproof protection, these fixtures provide reliable, energy-efficient illumination for residential, commercial, and public spaces.

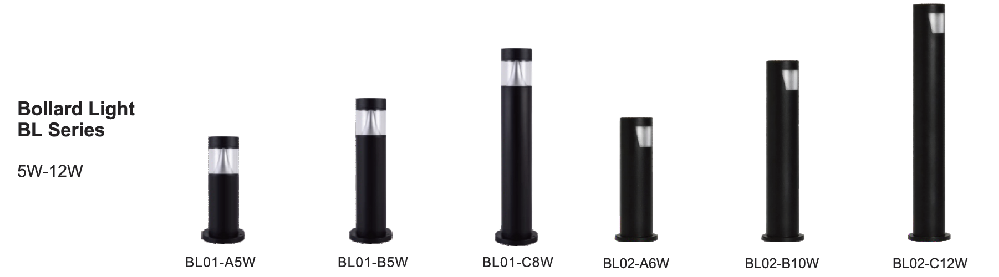

Series Models
| Model | Power | Design Family | Typical Applications |
|---|---|---|---|
| BL01-A5W | 5W | BL01 Series – Style A | Residential pathways, garden borders |
| BL01-B5W | 5W | BL01 Series – Style B | Commercial walkways, entrance areas |
| BL01-C8W | 8W | BL01 Series – Style C | Driveways, parking perimeters |
| BL02-A6W | 6W | BL02 Series – Style A | Landscape trails, public parks |
| BL02-B10W | 10W | BL02 Series – Style B | Hotel landscapes, resort pathways |
| BL02-C12W | 12W | BL02 Series – Style C | Municipal projects, commercial perimeters |
Design Families
BL01 Series – Classic Round Design
BL01-A5W – 5W, compact round profile, ideal for residential pathways
BL01-B5W – 5W, round with elegant detailing, suitable for commercial walkways
BL01-C8W – 8W, round with higher output, perfect for driveways and perimeters
BL02 Series – Modern Square Design
BL02-A6W – 6W, minimalist square profile, ideal for public parks and trails
BL02-B10W – 10W, square with enhanced brightness, suitable for hotel landscapes
BL02-C12W – 12W, square high-output, perfect for municipal and commercial projects
Key Features
Six Model Options
Two distinct design families (round BL01 series and square BL02 series) with power options ranging from 5W to 12W to suit various architectural styles and lighting requirements.IP66 Waterproof Rating

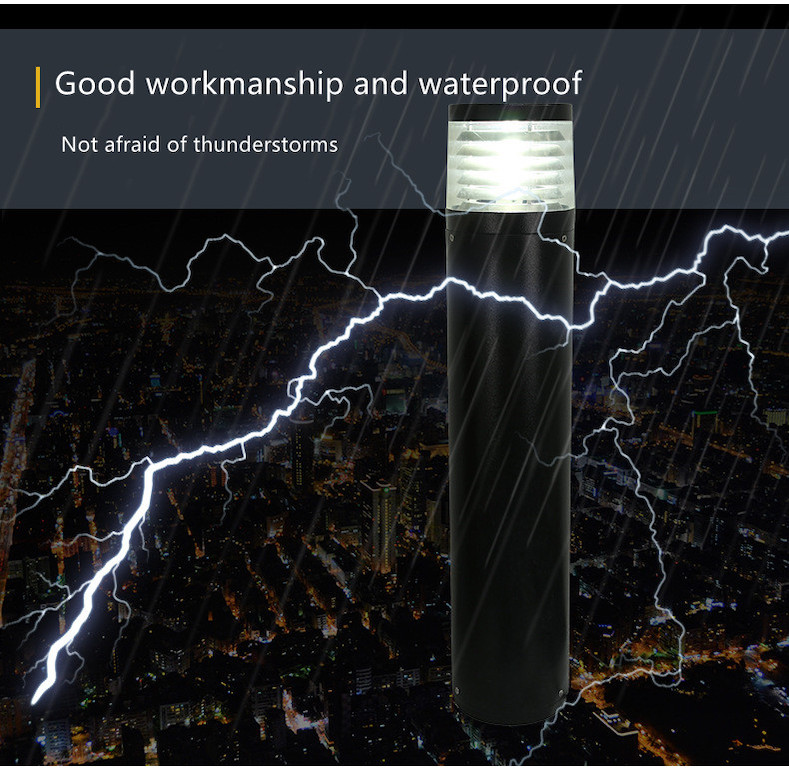

Fully protected against dust and powerful water jets, ensuring reliable performance in all weather conditions.Durable Construction

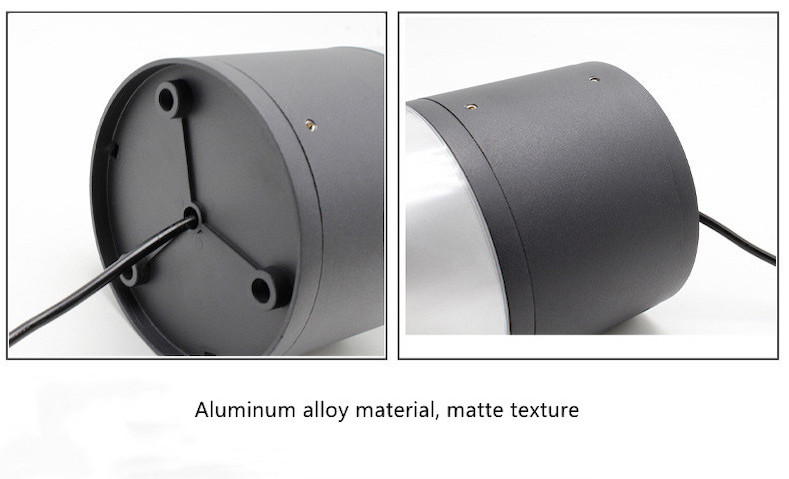

Die-cast aluminum housing with UV-stabilized powder-coated finish for superior corrosion resistance and long-term durability.Premium Optical System

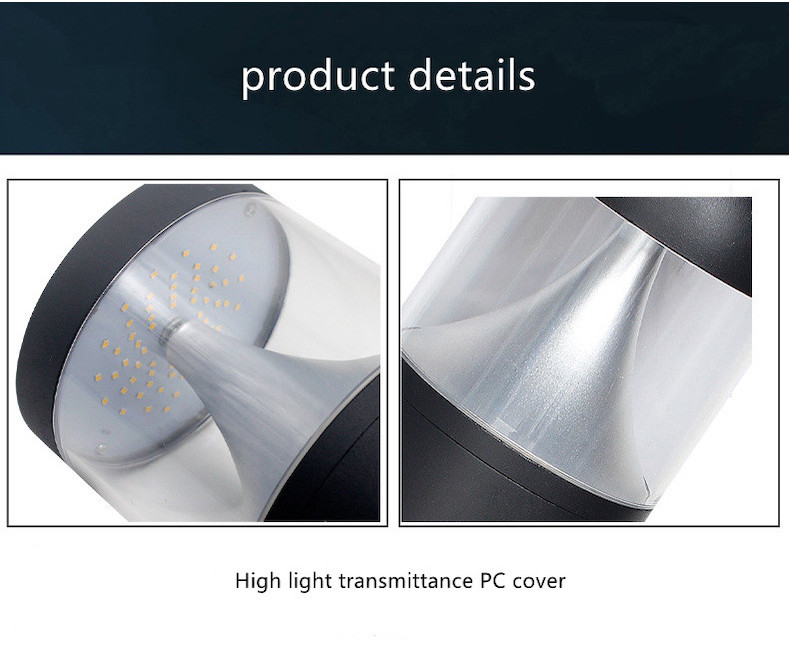

High-transmittance tempered glass lens with precision-engineered optics for uniform light distribution and reduced glare.Elegant Design Options
Choose between classic round (BL01) or modern square (BL02) aesthetics to complement different landscape and architectural styles.Easy Installation
Pre-wired with flexible conduit entry for simple surface or in-ground mounting.Optional Color Temperatures
Available in 3000K (warm white), 4000K (neutral white), or 5000K (cool white).

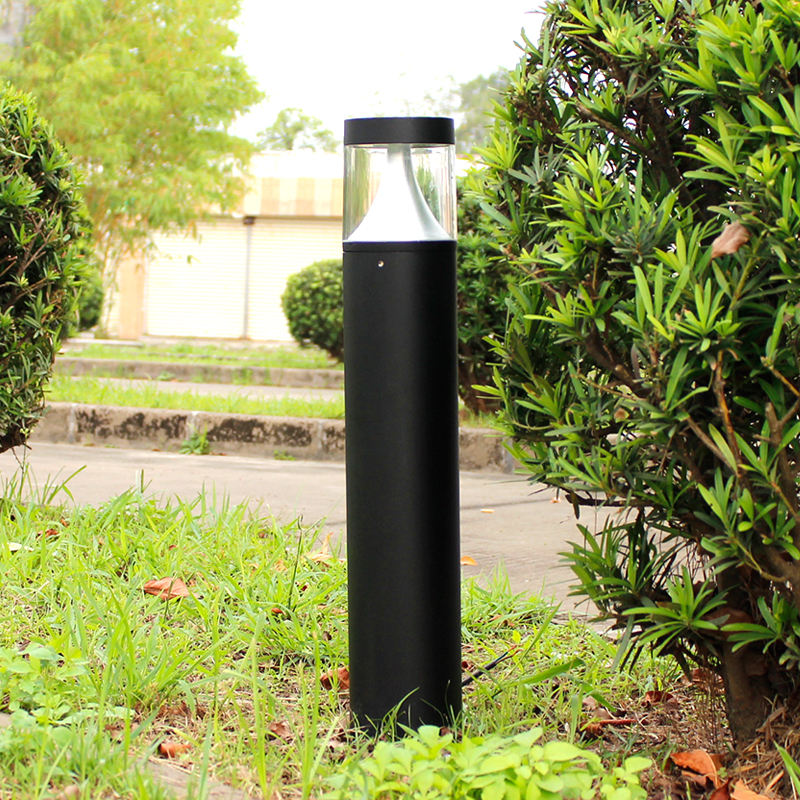

Applications
Residential pathways and garden borders
Commercial walkways and entrance areas
Driveways and parking perimeters
Public parks and landscape trails
Hotel and resort landscapes
Campus and corporate park pathways
Municipal lighting projects
Technical Specifications
| Specification | BL01-A5W | BL01-B5W | BL01-C8W | BL02-A6W | BL02-B10W | BL02-C12W |
|---|---|---|---|---|---|---|
| Power | 5W | 5W | 8W | 6W | 10W | 12W |
| Design | Round | Round | Round | Square | Square | Square |
| Light Source | High-power LED | High-power LED | High-power LED | High-power LED | High-power LED | High-power LED |
| Luminous Efficacy | ≥100 lm/W | ≥100 lm/W | ≥100 lm/W | ≥100 lm/W | ≥100 lm/W | ≥100 lm/W |
| Color Temperature | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Input Voltage | AC 100–277V or DC 12V/24V | AC 100–277V or DC 12V/24V | AC 100–277V or DC 12V/24V | AC 100–277V or DC 12V/24V | AC 100–277V or DC 12V/24V | AC 100–277V or DC 12V/24V |
| Waterproof Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Impact Rating | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 |
| Housing Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Lens Material | Tempered glass | Tempered glass | Tempered glass | Tempered glass | Tempered glass | Tempered glass |
| Operating Temp | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C | -20°C to +50°C |
| Lifespan | ≥50,000 hours | ≥50,000 hours | ≥50,000 hours | ≥50,000 hours | ≥50,000 hours | ≥50,000 hours |
Dimensions (Typical)
| Model | Height | Width | Base Diameter |
|---|---|---|---|
| BL01-A5W | 450mm | Ø120mm | 160mm |
| BL01-B5W | 550mm | Ø120mm | 160mm |
| BL01-C8W | 650mm | Ø120mm | 160mm |
| BL02-A6W | 450mm | 120×120mm | 160×160mm |
| BL02-B10W | 550mm | 120×120mm | 160×160mm |
| BL02-C12W | 650mm | 120×120mm | 160×160mm |
Selection Guide
BL Series is a practical choice for villas, hotel walkways, parks, driveways, and commercial pathways where low-glare guidance and durable outdoor construction matter. Choose the lower wattage models for residential paths and the taller, higher output versions for wider public circulation areas.
